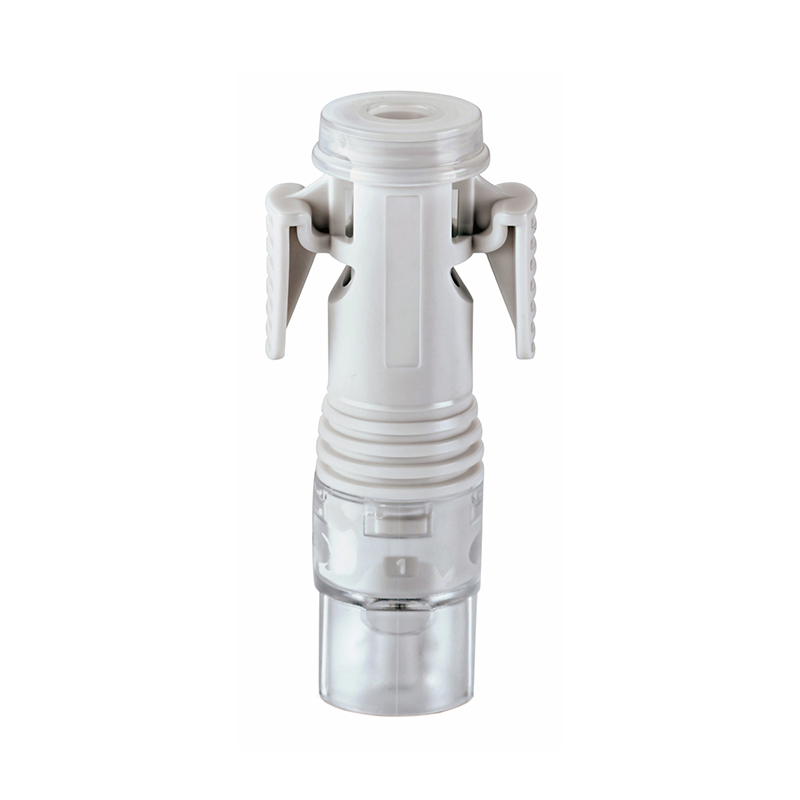

OnGuard® 2 Syringe Adaptor (SA)

The Syringe Adaptor (SA) connects with a simple click to any of the other OnGuard 2 components to confirm a secure connection that allows safe transfer of liquid from one container to another. The OnGuard 2 septum can be pierced up to 10 times, preventing drug leakage and contamination.1

The syringe adaptor fits most standard Luer Lock connections either to a syringe or the end of an IV administration set.

When connected to any other OnGuard 2 component, an audible click indicates a safe and closed connection. Upon disconnection, the self-sealing elastomers of the SA and the OnGuard 2 component they were connected to, prevent drug leakage and droplet formation on the outer septa surfaces. Thus enabling a dry disconnection.

A simple disconnection is achieved by pinching the SA wings.

The 16G needle allows easy withdrawal or transfer of liquid from a drug vial, from an IV bag / container, or through a set into a patient’s IV line. The protective cap allows delivery to the patient care area for bolus injections.


1 OnGuard® 2 CSTD Instructions for Use

Contact a Representative

Please take a minute to complete the request form or call 1-800-227-2862 to contact a B. Braun representative. Thank you.



Product Identification
Product Code 412163
WSN Number 08021-4121-63
Reference Number 412163
Storage and Shipping
Total Shelf Life (Months) 036
Ordering Unit Case
Units per Case 300
Dimensions per Case 15.630 x 11.693 x 11.299 inches
Shipping Weight per Case 11.618 lb
