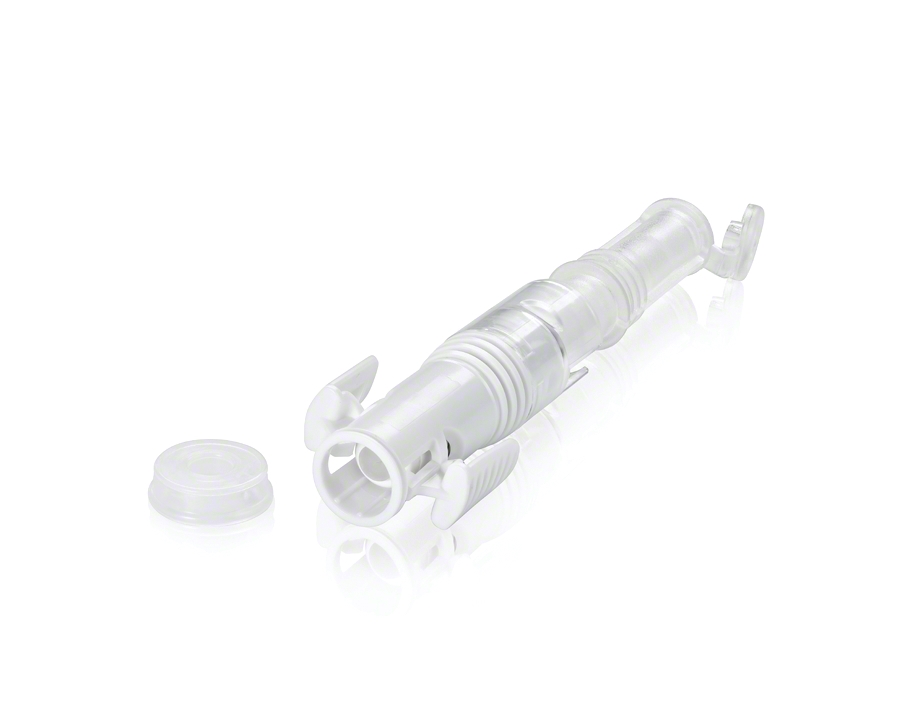

OnGuard® 2 Closed System Transfer Device Closed Adaptor Spike Port (SP)

  • The OnGuard 2 Closed Adaptor Spike Port SP is connected to the Bag Adaptor Closed Port (CP), which is connected to a standard IV bag.
  • It incorporates a 16 gauge needle that enables easy drug withdrawal, even for viscous medications. Additionally, its self-retracting needle mechanism is designed to protect the user from needlestick injuries.
  • It allows connection to IV administration sets (gravity or pump) through the spike port.
  • The transparent spike port access point enables the user to ensure that the primary set IV spike is inserted correctly into the spike port.
  • During manipulation, the “click” sound indicates a safe and secure connection between two OnGuard 2 Components.
  • The self-sealing elastomers are designed to prevent drug leakage and droplet formation on the outer septa surfaces.
  • A simple pinch on the Syringe Adaptor (SA) wings will disconnect the SA from the Bag Adaptor Port.
  • Not made with DEHP, PVC or natural rubber latex.
  • Tolerates disinfection with alcohol 70%.

Indications For Use:1

The OnGuard 2 Closed Administration Components are a single-use, sterile Closed System Transfer Device (CSTD) that mechanically prohibits the release of drugs, including antineoplastic and hazardous drugs, in vapor, aerosol or liquid form during administration, thus minimizing exposure of individuals, healthcare personnel and the environment to hazardous drugs. OnGuard 2 Closed Administration prevents the introduction of microbial and airborne contaminants into the drug or the fluid path for up to seven days and 10 activations.2

References:

1. OnGuard 2 Instructions For Use
2. 10 Activation Challenge



OnGuard 2 CSTD is manufactured by Simpliva Healthcare Ltd. and distributed by B. Braun Medical Inc. Rx only. ©2024 B. Braun Medical Inc., Bethlehem, PA. All rights reserved IVX97_3/24

Contact a Representative

Please take a minute to complete the request form or call 1-800-227-2862 to contact a B. Braun representative. Thank you.

more

Specifications

Product Identification
Product Code 412169
WSN Number 08021-4121-69
Reference Number 412169
Storage and Shipping
Total Shelf Life (Months) 036
Ordering Unit Case
Units per Case 100
Dimensions per Case 47.244 x 31.496 x 8.110 inches
Shipping Weight per Case 4.409 lb
